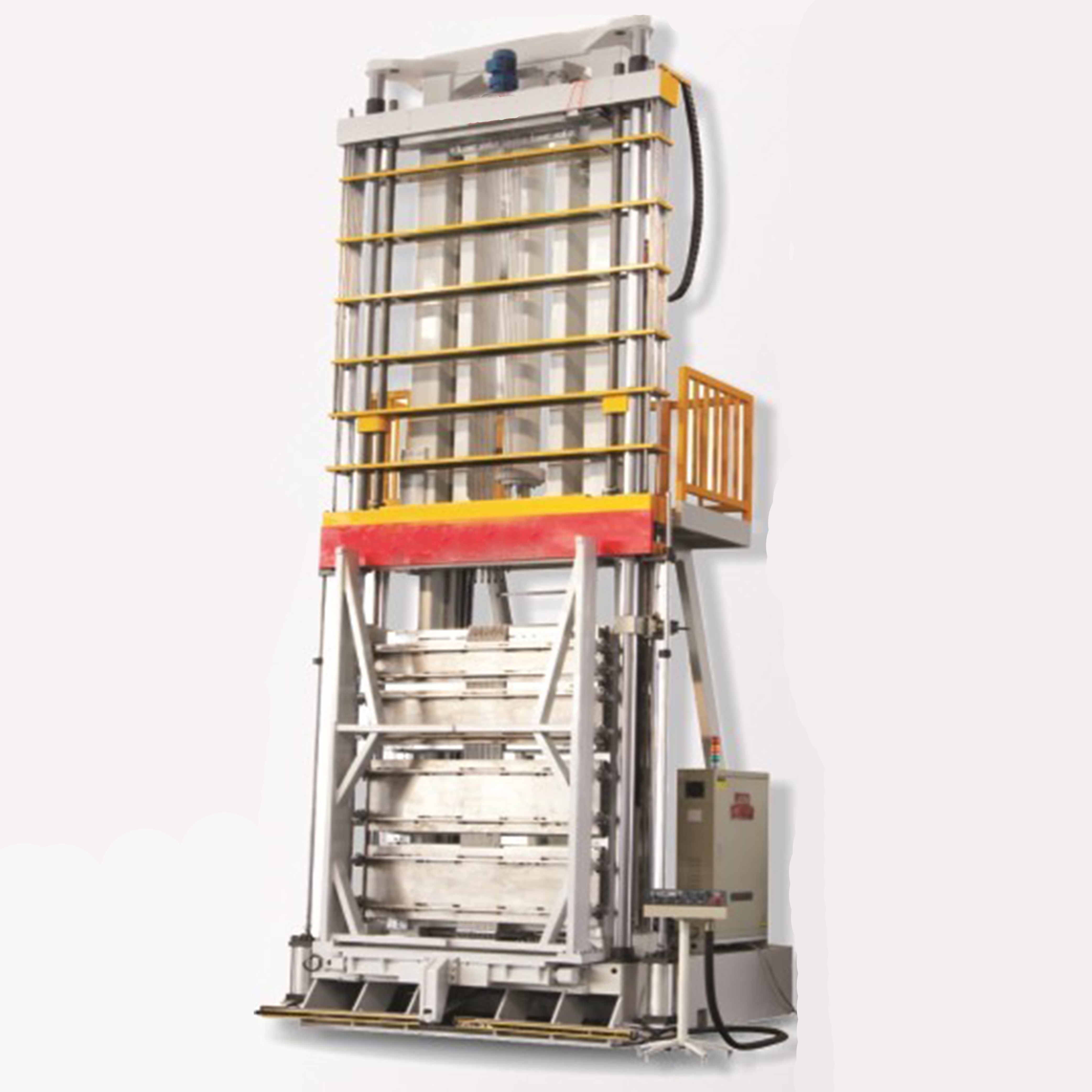

Hydraulic Exhaust Pipe Expanded Metal Mesh Beam Expander Machine

Structure Feature

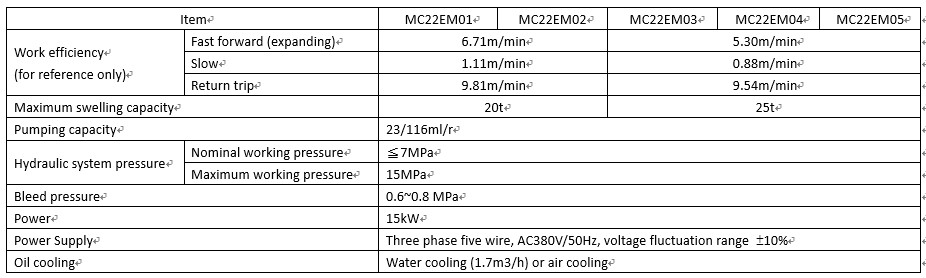

Plant parameter

Can be equipped with a special design of the dual station rotary table: a working station, a station, the next. At the end of the tube, the rotary table can be moved out of a distance, turning 180 degrees back to the original position to start the new expansion tube. So as to improve the working efficiency. (1200and the following models apply). For the type of the expansion tube length of 2000 and above, it can be equipped with the workpiece mounting bracket (flip door) and the hand to open the door (the number of holes corresponding to the opening of the hand when the workpiece is 1200).
